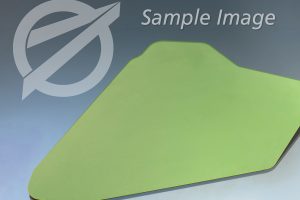

Sample CNC Machined and Formed Aluminum Shims
Sample 1100H19 Aluminum Shims
Overall Part Dimensions: 16.2" X 4.9" X 0.023"
Primary Process: Shear / Saw / CNC Machine / Deburr / Form
Secondary Process: Surface Finish / Final QA / FAIR
- Length: 16.2"
- Width: 4.9"
- Thickness: 0.023"
- Tightest Tolerances: +/- 0.002"
- Material: 1100H19 Aluminum
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 97
| Primary Process | Shear, Saw, CNC Machining, Deburr, Form |
|---|---|
| Secondary Process | Surface finish, Final Quality Assurance, FAIR |
| Overall Part Dimensions | 16.2" X 4.9" X 0.023" |
| Length | 16.2" |
| Width | 4.9" |
| Thickness | 0.023" |
| Tightest Tolerances | +/-0.002" |
| Material | 1100H19 Aluminum |
| Testing | In Process Inspection, Final QA, FAIR |
| Production Volume | 97 |
