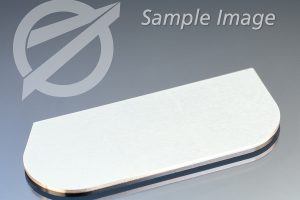

Sample Tapered Shim for the aerospace industry
Sample 7475T7351 Aluminum Tapered Shims
Overall Part Dimensions: 18" X 2" X 0.185"
Primary Process: Shear/ Saw / Machine / Deburr
Secondary Process: Surface finish / Part Marking / Final QA / FAIR
- Length: 18"
- Width: 2"
- Thickness: 0.185"
- Tightest Tolerances: +/- 0.002"
- Material: 7475T7351 Aluminum
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 17
| Primary Process | Shear, Saw, Machine, Deburr |
|---|---|
| Secondary Process | Surface finish, Part Marking, Final Quality Assurance, FAIR |
| Overall Part Dimensions | 18" X 2" X 0.185" |
| Length | 18" |
| Width | 2" |
| Thickness | 0.185" |
| Tightest Tolerances | +/-0.002" |
| Material | 7475T7351 Aluminum |
| Testing | In Process Inspection, Final QA, FAIR |
| Production Volume | 17 |
