Sample Carbon Steel Solid Shim
Sample Carbon Steel 1008/1010 Solid Shims
Overall Part Dimensions: 2.4" X 1.3" X 0.25"
Primary Process: Shear / Saw / CNC Machine / Deburr
Secondary Process: Heat Treat / Surface Finish / Final QA / FAIR
- Length: 2.4"
- Width: 1.3"
- Thickness: 0.25"
- Tightest Tolerances: +/- 0.002"
- Material: Carbon Steel 1008/1010
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 248
| Primary Process | Shear, Saw, CNC Machining, Deburr |
|---|---|
| Secondary Process | Heat Treat, Surface finish, Final Quality Assurance, FAIR |
| Overall Part Dimensions | 2.4" X 1.3" X 0.25" |
| Length | 2.4" |
| Width | 1.3" |
| Thickness | 0.25" |
| Tightest Tolerances | +/-0.002" |
| Material | Carbon Steel 1008/1010 |
| Testing | In Process Inspection, Final QA, FAIR |
| Production Volume | 248 |
Only logged in customers who have purchased this product may leave a review.
Related products

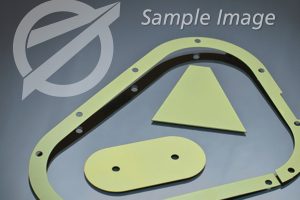

Machined/Formed
Overall Part Dimensions: 9.2" X 6.3" X 0.125"
Primary Process: Shear / Saw / CNC Machine / Deburr / Form
Secondary Process: Surface Finish / Part Mark / Final QA / FAIR
- Length: 9.2"
- Width: 6.3"
- Thickness: 0.125"
- Tightest Tolerances: +/- 0.002"
- Material: Carbon Steel 1008/1010
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 163
Solid Shims
Overall Part Dimensions: 4.32" X 4.32" X 0.016"
Primary Process: Shear / Saw / CNC Machine / Deburr
Secondary Process: Engrave / Final QA / FAIR
- Length: 4.32"
- Width: 4.32"
- Thickness: 0.016"
- Tightest Tolerances: +/- 0.002"
- Material: 13-8MO Stainless Steel
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 155
Solid Shims
Overall Part Dimensions: 4.612" X 1.312" X 0.063"
Primary Process: Shear / Saw / CNC Machine / Deburr
Secondary Process: Part Mark / Bag / Final QA
- Length: 4.612"
- Width: 1.312"
- Thickness: 0.063"
- Tightest Tolerances: +/- 0.002"
- Material: Titanium TI 6AL-4V ANN
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 76

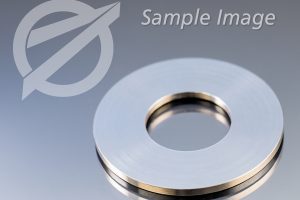

Washers/Spacers
Overall Part Dimensions: 1.575" X 1.575" X 0.032"
Primary Process: Shear / Laser Cut
Secondary Process: Heat Treat / Surface Finish / Final QA / FAIR
- Length: 1.575"
- Width: 1.575"
- Thickness: 0.032"
- Tightest Tolerances: +/- 0.002"
- Material: Carbon Steel 1008/1010
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 65
Edgebonded Shims
Overall Part Dimensions: 6.9" X 4.2" X 0.380"
Primary Process: Auto Shearing / CNC Machining / Drilling / Milling
Secondary Process: Edgebonding / Part Marking / Final Quality Assurance
- Length: 6.9"
- Width: 4.2"
- Thickness: 0.380"
- Tightest Tolerances: +/- 0.002"
- Material: Carbon Steel 1008/1010
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 95
Washers/Spacers
Overall Part Dimensions: 5.53" X 5.53" X 0.17"
Primary Process: Shear / Stamp
Secondary Process: Heat Treat / Surface Finish / Final QA / FAIR
- Length: 5.53"
- Width: 5.53"
- Thickness: 0.17"
- Tightest Tolerances: +/- 0.002"
- Material: Blue Tempered Spring Steel BTSS 1074/75
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 48

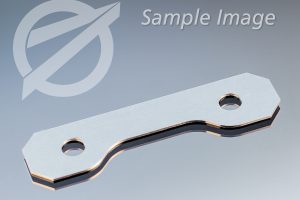

Solid Shims
