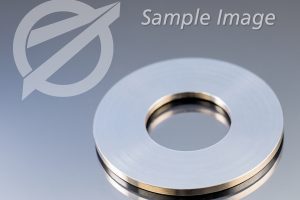

Sample Graphite Nylon Washer

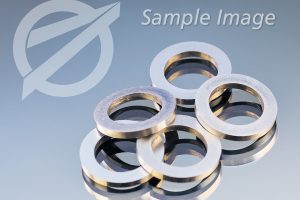

Sample Nylon Washers
Overall Part Dimensions: 0.620" X 0.620" X 0.40"
Primary Process: Shear / Turn / Drill
Secondary Process:Final QA
- Length: 0.620"
- Width: 0.620"
- Thickness: 0.40"
- Tightest Tolerances: +/- 0.002"
- Material: Nylon
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 400
| Primary Process | Shear, Drilling, Turn |
|---|---|
| Secondary Process | Final Quality Assurance |
| Overall Part Dimensions | 0.620" X 0.620" X 0.40" |
| Length | 0.620" |
| Width | 0.620" |
| Thickness | 0.40" |
| Tightest Tolerances | +/-0.002" |
| Material | Nylon |
| Testing | In Process Inspection, Final QA, FAIR |
| Production Volume | 400 |
