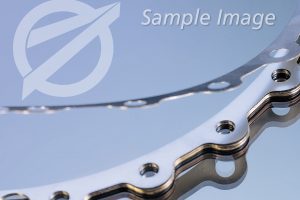

Sample Edgebonded shims for the aerospace industry
Sample Stainless Steel 302 Annealed Edgebonded Shims
Overall Part Dimensions: 12" X 12" X 0.220"
Primary Process: Auto Shearing / CNC Machining / Drilling / Milling
Secondary Process: Edgebonding / Part Marking / Final Quality Assurance
- Length: 12"
- Width: 12"
- Thickness: 0.220"
- Tightest Tolerances: +/- 0.002"
- Material: Stainless Steel 302 Annealed
- Testing: In Process Inspection / Final QA / FAIR
- Production Volume: 220
| Primary Process | Auto Shearing, CNC Machining, Drilling, Milling |
|---|---|
| Secondary Process | Edgebonding, Part Marking, Final Quality Assurance |
| Overall Part Dimensions | 12" X 12" X 0.220" |
| Length | 12" |
| Width | 12" |
| Thickness | 0.220" |
| Tightest Tolerances | +/-0.002" |
| Material | Stainless Steel 302 Annealed |
| Testing | In Process Inspection, Final QA, FAIR |
| Production Volume | 220 |
